Lighting Up The Future: How LED Backlight Technology Reshapes The Visual Experience

LED backlight: More than just energy saving

LED backlight technology has long surpassed the simple advantage of energy saving. Compared with traditional CCFL backlight, LED backlight provides a wider color gamut, higher contrast and more precise brightness control, bringing more realistic and delicate picture performance.

Mini LED and Micro LED: The dawn of next-generation display technology

With the continuous advancement of technology, new LED backlight technologies such as Mini LED and Micro LED have emerged. These technologies reduce the size of LED lamp beads to the extreme, achieve more refined partition control, bring higher contrast and purer black performance, and provide a more ideal platform for HDR content presentation.

The application field of LED backlight continues to expand

In addition to traditional display devices, LED backlight technology also shows great potential in automotive lighting, medical display, commercial lighting and other fields. Its high brightness, long life and customizability bring more efficient and reliable solutions to all walks of life.

Choose LED backlight, choose a better visual future

With the continuous development and popularization of LED backlight technology, we will usher in a clearer, brighter and more colorful visual world. Whether it is an audio-visual enthusiast who pursues the ultimate picture quality, or a professional who focuses on efficiency and reliability, LED backlight technology will bring you an unprecedented visual experience.

LED backlight mainly consists of the following key parts:

1. LED light bar
It is composed of light-emitting diodes (LEDs) and flexible circuit boards (FPCs).
The LED lamp beads are mounted on the FPC and connected to the external circuit through gold fingers.

2. Light guide plate/LGP
A transparent plate with laser dots on one side.
The main function is to guide the light source entering from the side to turn it into a flat light output.

3. Reflector
Located at the bottom of the light guide plate. High reflection efficiency, used to reflect the light leaking from the bottom of the light guide plate back to the light guide plate for reuse.

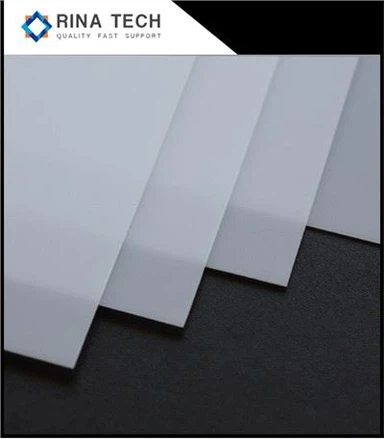

4. Diffuser
Refract and scatter the light through the internal acrylic ball, rough surface or diffusion particles. Make the light uniform, cover poorly, and ensure that the light is evenly distributed on the entire surface of the LCD screen.

5. Brightness Enhancement Film/Prism (BEF)
The surface has a prism structure and has a focusing effect. Concentrate scattered light within a certain range and increase the brightness of the light within the range.

6. (Additional components of MiniLED backlight module)
Substrate: The foundation of the backlight module, usually made of hard plastic or metal, used to support other components.
MiniLED chip: The core part of the backlight module, responsible for generating the backlight source.
Optical film: used to improve the distribution and uniformity of light.
Connectors and other components: used to connect the backlight module and other parts, such as power supply and control system.

These components work together to achieve efficient, uniform and energy-saving lighting effects of LED backlight.
