What are the characteristics of the light guide panel

Panel light guide plate

Light guide panel

LGP used for

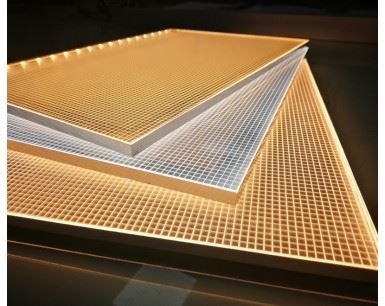

1. The design and manufacturing principle of the light guide plate of the panel light is derived from the LCD technology of the notebook computer as a reference for technical improvement. The technology of the light guide plate of the LED panel light is to transform the line light source into a surface light source, which has scientific and technological elements after practical application. The optical grade acrylic board is used as the basic raw material, and the liquid crystal display and laptop backlight module display technology are used to pass the full high light transmittance of the light guide point, and the LED panel light fittings are designed by the pc to the light guide point distribution design. The light of the light guide plate is converted into a uniform light state of the surface light source, designed and manufactured, and formed. LED panel Light guide plate adopts spectral analysis technology and pulse laser engraving technology, combined with V-Cutting scribing principle, and is manufactured in a constant temperature, constant humidity, and dust-free environment.　　

2. The reflection points of the LED light source located on both sides of the light guide plate of the panel light are small and round, and the light source and the light source are kept at a balanced and appropriate distance. The reflection point in the middle part of the light guide plate is tight and thick and looks exactly like an ellipse. . When the LED light enters the light guide plate from the two sides of the light source and hits the reflection point, the LED light source is diffusely reflected to the surface of the light guide plate: the other is that the light directly penetrates the light guide plate and reaches the surface. The closer the light source is to the light guide plate, the stronger the direct light, and the weaker the far away; on the other hand, the reflection points close to the light source are fine and distant, and the diffusely reflected light is less. On the contrary, those from the far-away light source are thick and tight. The light reflected by the dots is richer. After these lights are mixed and mixed, they then reach the effect of brightening the entire light guide plate.　　

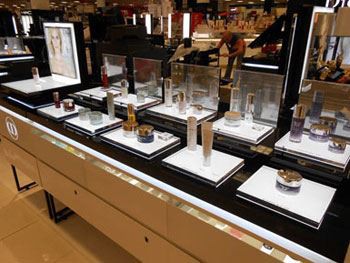

3. LED panel light light guide plate accessories The light guide plate has an ultra-thin design, high color rendering and brightness, and its light guide performance is uniform. It is an energy-saving and environmentally friendly lighting product, durable, not easy to yellow, no dark areas, convenient installation, simple maintenance, etc. Performance and characteristics, in addition to LED panel light products, it is also used in LED ceiling lights, LED panel lights, ultra-thin light boxes, LCD TVs, LED light-emitting curtain walls, medical film viewers and other products.

What are the characteristics of the panel light guide plate?

1 It can be cut to the required size at will, and it can also be used by splicing. The process is simple and the production is convenient.

2High gray value, uniform light, long life, normal use for more than 8 years indoors, safe and environmentally friendly, durable and reliable, suitable for both indoors and outdoors

3Under the same area of luminous brightness, luminous efficiency and low power consumption

4Can be made into special shapes, such as circles, ellipses, arcs, triangles, etc.

5In the case of the same brightness, thinner products can be used, saving costs

6Any light source can be used, point-line light source for surface light source conversion, light source including LED CCFL (cold cathode lamp), fluorescent tube, etc.
