Small RGB LED Backlight

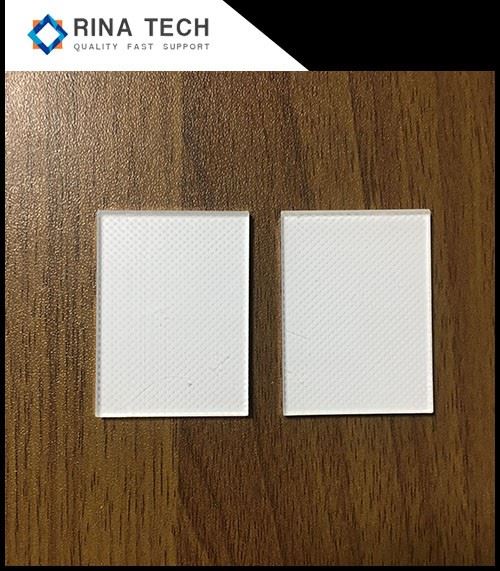

Product Name: Small RGB LED Backlight
Material: Light guide plate, diffuser film, reflective film, LED strip, light-shielding paper
Size: Customizable
Thickness: Customizable from 1.2mm and above
Advantages:
Small RGB LED backlight enhances visual effects in multiple scenarios; RGB tri-color LEDs present rich colors.
Supports dynamic effects and custom color adjustment; easy to operate.
Compact size, easy to integrate into electronic devices; also suitable for decorative lighting.
Energy-efficient and long lifespan, combining aesthetics and practicality.
The preferred choice for modern electronics and design projects.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Rina Technology Co., Ltd. is one of the leading manufacturers and suppliers of small rgb led backlight in China. Welcome to wholesale durable products in stock here and get quotation from our factory. All customized products are with high quality and low price.
Products Description
Introduction to Small RGB LED Backlight
A Small RGB LED Backlight is a compact backlight component that integrates red (R), green (G), and blue (B) LEDs, providing a variety of colors.
Its core feature is its miniaturization, making it suitable for applications with strict space constraints. Compared to traditional monochrome backlights or large RGB backlights,
it offers a significant size advantage while retaining the adjustable color characteristics of RGB backlighting. By mixing the three primary colors in different proportions,
it can produce thousands or even millions of color effects.This component is widely used in small electronic devices, consumer electronics, smart wearable devices, micro-display modules, and decorative lighting.
Advantages of Small RGB LED Backlight
- Compact Size and High Adaptability:
The core advantage lies in its miniaturization. Its compact size allows for easy embedding in space-constrained small electronic devices , miniaturizing installation space and solving the problem of traditional RGB backlights being too bulky and unsuitable for small devices.
- Rich Colors and Flexible Adjustment:
Integrating RGB tri-color LED beads, it supports multi-color mixing and adjustment. Users can switch between any colors, adjust brightness and color saturation as needed, achieving both constant single-color illumination and dynamic effects such as gradients, breathing, and flashing, meeting the visual needs of different scenarios and adapting to various applications such as decoration, prompts, and display assistance.
- Low energy consumption and long battery life:
Utilizing small LED beads, it boasts high luminous efficiency and consumes significantly less energy compared to traditional backlight components of equivalent brightness. This makes it particularly suitable for small, portable devices powered by batteries (such as smart wearables and mini appliances), effectively reducing energy consumption and extending battery life.
- Easy installation and good compatibility:
Its simple design, typically employing surface mount, snap-on, or wired mounting methods, makes operation simple and requires no complex installation tools. It is also compatible with mainstream control methods, easily connecting to various microcontrollers and control boards, and adapting to different device control systems.
How to Use a Small RGB LED Backlight
Step 1: Installation and Fixing
1. Surface-mount Small RGB LED Backlight: First, clean the mounting area (ensuring it is free of dust and oil). Align the backlight assembly with the mounting position and use a hot air gun (temperature controlled at 260-280℃) to solder the surface-mount components, ensuring a firm solder joint without any cold solder joints or solder bridging to avoid damaging the LEDs.
2. Wire-leaded Small RGB LED Backlight: Directly place the backlight assembly into the pre-set mounting slot and secure it with double-sided tape, clips, or screws (choose according to the equipment design). Ensure a secure fixation to prevent loosening during use and affecting the lighting effect.
Step 2: Wiring Connection
Small RGB LED Backlights typically include 4 leads (or pins), corresponding to VCC (positive power), GND (negative power), R (red control), G (green control), and B (blue control). Some simplified models have only 3 leads (integrated control). Pay close attention to the correspondences when wiring to avoid reversing connections and damaging the component:
1. Power Connection: Connect the VCC lead to the positive terminal of the device's power supply (usually 3.3V-5V, refer to product specifications for details). Connect the GND lead to the negative terminal of the power supply. Ensure voltage matching and never exceed the rated voltage.
2. Control Connection: Connect the R, G, and B control leads to the corresponding GPIO pins on the control board (or microcontroller). If using a dedicated RGB controller, simply insert them into the corresponding interface; no manual pin identification is required (refer to the controller's manual).
Step 3: Debugging and Control
1. Basic Control (Without Controller): Control the levels (or PWM signals) of the microcontroller's GPIO pins through programming to adjust the current ratios of the three primary colors (R, G, B), achieving color switching and brightness adjustment. For example, connecting only the R pin displays red; connecting both R and G pins simultaneously displays yellow, and so on.
2. Convenient Control (With Dedicated Controller): After connecting the controller to the backlight assembly, directly switch color modes (monochrome, gradient, breathing, flashing) and adjust brightness and color saturation via the controller's buttons, an app, or a remote control. No programming is required, and beginners can operate it directly.
3. Debugging and Inspection: After wiring, connect the power supply and debug different color modes to check if the backlight emits light evenly and if color switching is smooth. If there is no light emission or abnormal color, check if the wiring is correct, the soldering is secure, or the voltage is mismatched.
RINA TECHNOLOGY
is a high-tech enterprise specializing in research, development, production ,sales of Optical LED products and provide the one step optical lighting solution for customers.Established in 2011, Hong Kong, after years of rapid development, Rina Tech has settled office and factory in Shenzhen,and has professional senior technicians and qualified managers,has a talented team for product research and designing.
Nowadays, we have laser cutting machines, printers, film cutting machines, injection molding equipments,high-standard assembly workshops, BM-7 clean machines and other advanced equipments.
Our factory daily output is more than 80000pcs. to cater for the market at home and abroad.With years of unremitting effort,RINA TECH has passed get the Registration Certificate ofCustoms Declaration Unit of the People's Republic of China , National Credit Cultivation Certificate and Get our own Brand already.
We has made many breakthroughs in researching and manufacturing and has
obtained lots of good reputation from oversea customers.
Now we has cooperated with and become strategic partner of some famous enterprises such as LG, Samsung, Lenovo etc."Living on Sincerity, following with Market, Advancing by Specialty" is our eternal philosophy,and the company motto is "Good at Production, Good for Society".
We look forward to cooperating with you to make the world better and future brighter!
FAQ
1. What could be causing the small RGB LED backlight to fail to light up?
A: There are three main reasons:
① Incorrect wiring: Check if VCC and GND are reversed and if the voltage matches (must conform to the product's rated voltage of 3.3V-5V);
② Poor soldering (for surface mount LEDs): Check if the LED chip solder joints are secure and if there are any solder bridging or cold solder joints;
③ Control pins not connected: Check if the R, G, and B control leads are properly connected to the control board. If using a controller, ensure the controller is powered on.
2. How to resolve the abnormal color display of the small RGB LED backlight (e.g., color distortion, inability to switch colors)?
A: ① Color cast: Check if the control leads for the corresponding color are making good contact, or adjust the PWM signal duty cycle to balance the proportions of the three primary colors; ② Unable to switch to a certain color: Check if the LED corresponding to that color is damaged, or if the control pin is faulty. Try replacing the lead or resoldering; ③ All colors are too dim: Check if the power supply voltage is too low, or if the brightness adjustment parameters are set incorrectly. Appropriately increase the voltage (not exceeding the rated value) or the brightness parameter.
3. What devices are suitable for Small RGB LED Backlights? What precautions should be taken during installation?
A: Suitable for small electronic devices with limited space, such as smart wearable devices (wristbands, watches), miniature displays, miniature speakers, small toys, sensors, and automotive miniature indicator lights; Installation precautions: ① For surface mount LEDs, control the soldering temperature to avoid burning out the LEDs; ② For wire-mount LEDs, securely fix them to prevent loosening; ③ When wiring, strictly distinguish between positive and negative terminals and control pins, and never reverse them.
4. Can Small RGB LED Backlights be used continuously for extended periods? Will this affect their lifespan?
A: Yes, it can be used continuously for extended periods, but its lifespan will be affected by brightness and ambient temperature. It is recommended to use it within the rated brightness range and avoid prolonged exposure to high temperatures (such as near heat-generating components). Under normal circumstances, it can last for tens of thousands of hours without frequent replacement.
5. How to adjust the brightness and dynamic effects of the Small RGB LED Backlight?
A: ① Brightness Adjustment: Adjusted by controlling the PWM signal duty cycle (without a controller), or via the brightness button on a dedicated controller or an app (with a controller). A higher duty cycle results in greater brightness. ② Dynamic Effects (Gradual Change, Breathing, Flashing): Without a controller, dynamic effects can be achieved by programming the frequency of different pin level changes. With a controller, preset modes can be switched directly without programming, making operation more convenient.
6. What is the rated voltage of the Small RGB LED Backlight? Can it be directly connected to a household circuit?
A: The rated voltage of Small RGB LED Backlight is usually 3.3V-5V (refer to the product specifications for details). It is a low-voltage component and must not be directly connected to a household 220V circuit, otherwise the component will be burned out instantly. If you need to use it in a home setting, you need to use it with a step-down module (to convert 220V to below 5V) and a controller before connecting it.
