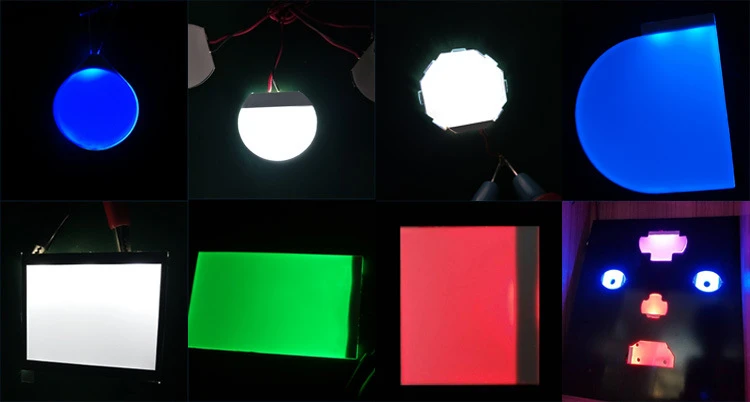

Backlight Panels For Various Devices

The backlight unit (BLU) is an indispensable key component of the liquid crystal display (LCD). It is like the heart of the LCD, providing it with a uniform and bright light source. Since the liquid crystal itself does not have the property of emitting light, the role of the backlight is crucial. It is responsible for converting point light sources or line light sources into uniform surface light sources, thereby ensuring that the LCD screen presents clear, bright, and color-accurate images. The quality of the backlight directly affects the display effect, visual experience, and overall performance of the LCD.

Core function: Provide excellent optical performance

Provide a high-brightness, high-uniformity light source: The core mission of the backlight is to provide sufficient brightness while ensuring that the light distribution of the entire screen is uniform, avoiding uneven brightness, dark corners, or bright spots, thereby improving visual comfort and image quality.
Support the visibility of LCD display images: Without backlight, LCD cannot display any images. The backlight provides the necessary light source for the LCD, enabling it to clearly present text, images, videos, and other content.
Optimizing light direction and efficiency through optical films: Modern backlight panels are usually equipped with multi-layer optical films, which can effectively control the direction of light, improve light utilization, enhance brightness, expand viewing angle, and improve color performance, thereby optimizing the overall display effect.

LED backlight (mainstream): Leading the future of green lighting
Energy saving: Compared with traditional light sources, LEDs have higher luminous efficiency and lower power consumption, which can significantly reduce energy consumption.
Thin and light: LEDs are small in size, making the backlight panel very thin and light, meeting the needs of modern electronic devices for lightweight and portability.
Long life: LEDs have a much longer life than traditional light sources, providing longer-lasting reliability and lower maintenance costs.
Classification:
Edge-lit LED backlight: LEDs are located at the edge of the screen and distribute light evenly to the entire screen through a light guide plate. This design is thin and light, energy-saving, and is widely used in devices such as laptops, tablets, and smartphones.
Direct-lit LED backlight: LEDs are arranged directly below the screen and distribute light evenly to the entire screen through a diffuser. This design has higher brightness and better color performance, and is often used in devices such as TVs and high-end monitors.
CCFL backlight (old style): The tears of the times, gradually withdrawing from the stage of history**
Low cost: CCFL (cold cathode fluorescent lamp) backlight has cost advantages in the early days.
High power consumption: Compared with LED, CCFL has higher power consumption, which is not conducive to energy saving and environmental protection.
Contains mercury: CCFL contains harmful substances such as mercury, which poses a potential threat to the environment.
Gradually phased out: With the continuous development of LED technology and the decline in cost, CCFL backlight is gradually being phased out.

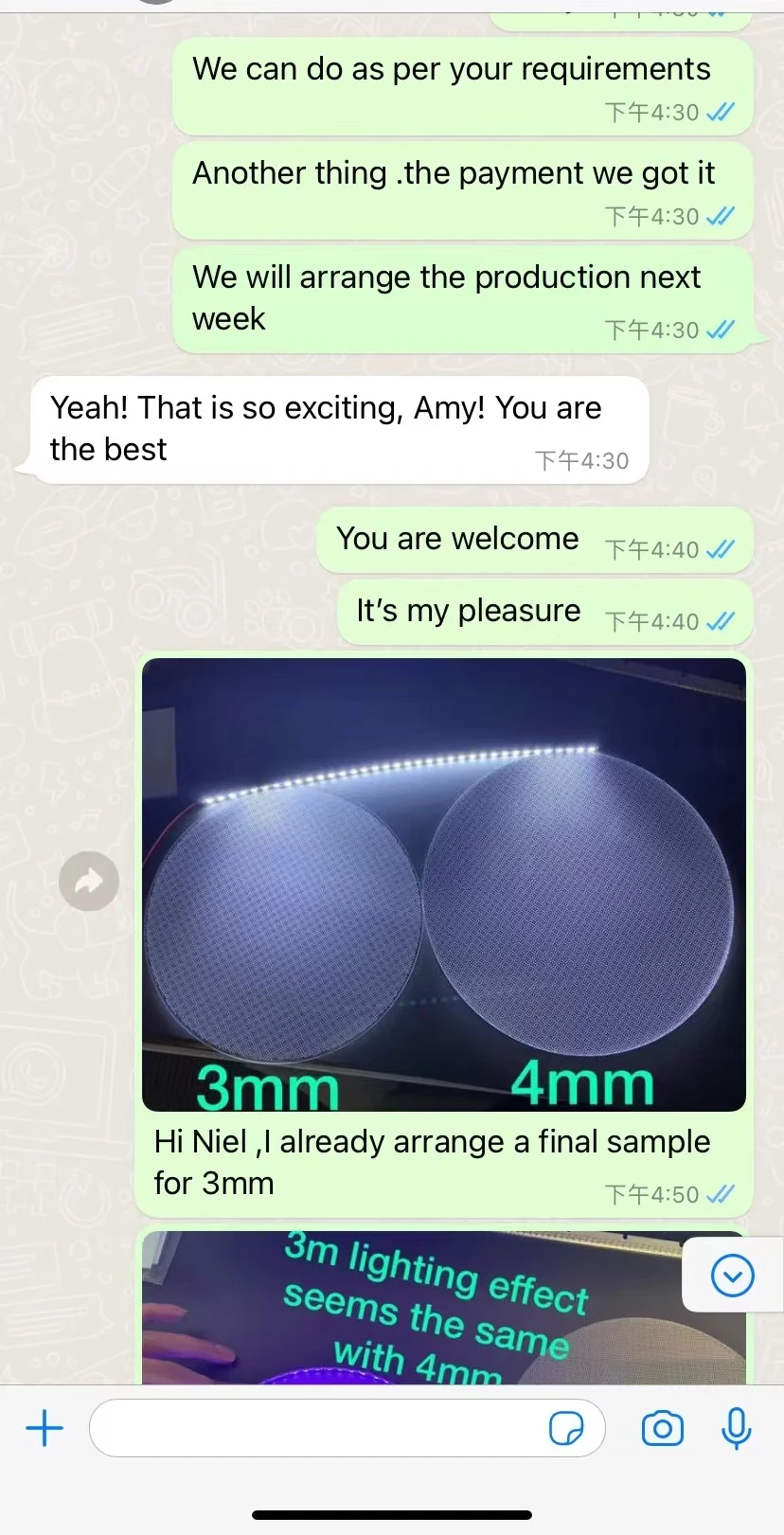

Material: optical grade PMMA (acrylic) or PC (polycarbonate);
: Converts line/point light sources into uniform surface light sources, through dot design (laser engraving or)/reflection of light.
Design key: dot density, shape, and distribution need to match the light source position.

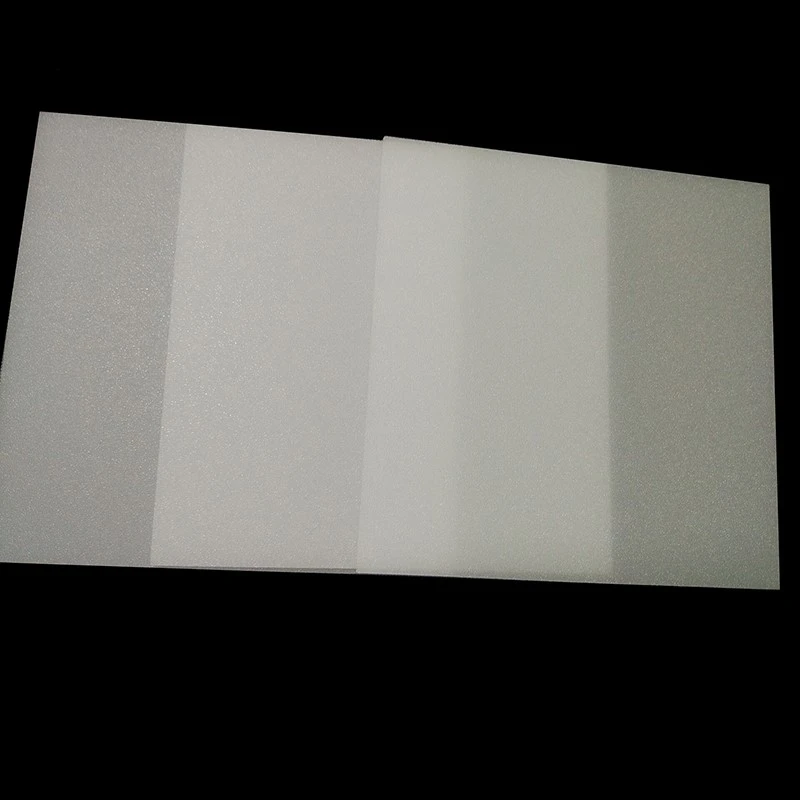

Material: Silver-coated PET or high-reflectivity white film;
: Prevent light from irradiating and reflect scattered light back to the light guide plate.

Structure: Surface coating with micron-sized particles (such as SiO2 or silicone);
Function: Blur the light source and dot structure to improve uniformity.

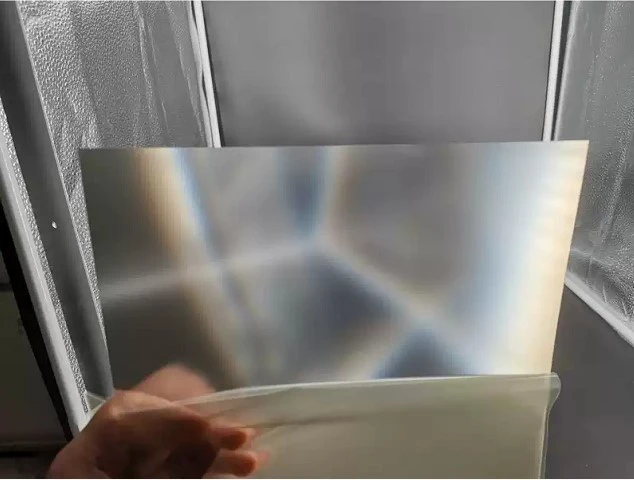

Type: Prism Sheet (such as 3M's BEF), Microlens Film;
Function: Focus the large-angle light vertically through the prism structure to improve the front brightness and efficacy.

LED Arrangement: Side-lit (LEDs are arranged at the edge of the light guide plate) or direct-lit (LEDs are evenly distributed at the bottom);
Drive Circuit: Control brightness (PWM dimming), color temperature (RGB combination).

Material: Metal (aluminum alloy) or insulation (insulation);
Optical film layer to prevent earthquake effects and fixed entry.

- Optical film (light guide plate, diffusion film, etc.) incoming material inspection (light transmittance, haze, thickness);
- LED light source test (luminous flux, color temperature, voltage consistency).

Dot production: laser engraving (accuracy ±5μm) or screen printing (UV curing ink);
Cutting and molding: CNC or mold stamping, edge polishing.

Film cutting: die cutting according to size requirements, edge burrs need to be <0.1mm;
Lamination sequence: light guide plate → reflective film → diffusion film → brightening film (possible gradient).

LED mounting: SMT process welding LED to FPC/PCB, positioning accuracy ±0.2mm;
Light guide plate and light source connection: side light type requires precise alignment of LED and light guide plate light entrance surface.

- Use UV glue or hot melt glue to fix the film layer to avoid bubbles and wrinkles;
- The metal frame is locked by screws or buckles.

Uniformity test: 9/13 point brightness, uniformity must be >85%;
Chroma test: Color coordinate (CIE x, y) deviation <±0.005;
Aging test: Continuously light up for 48 hours under high temperature and high humidity (85℃/85%RH) to confirm that there is no light decay.
