Diamond Pattern Prism Plate
Product Name: Diamond Pattern Prism Plate
Material: PS, PMMA, PC
Thickness: Customizable
Size: Customizable
Advantages: Diffuses light,
reduces glare,
optimizes light propagation path,
improves light utilization and distribution uniformity.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Rina Technology Co., Ltd. is one of the leading manufacturers and suppliers of diamond pattern prism plate in China. Welcome to wholesale durable products in stock here and get quotation from our factory. All customized products are with high quality and low price.
Products Description
Diamond Pattern Prism Plate Product Introduction

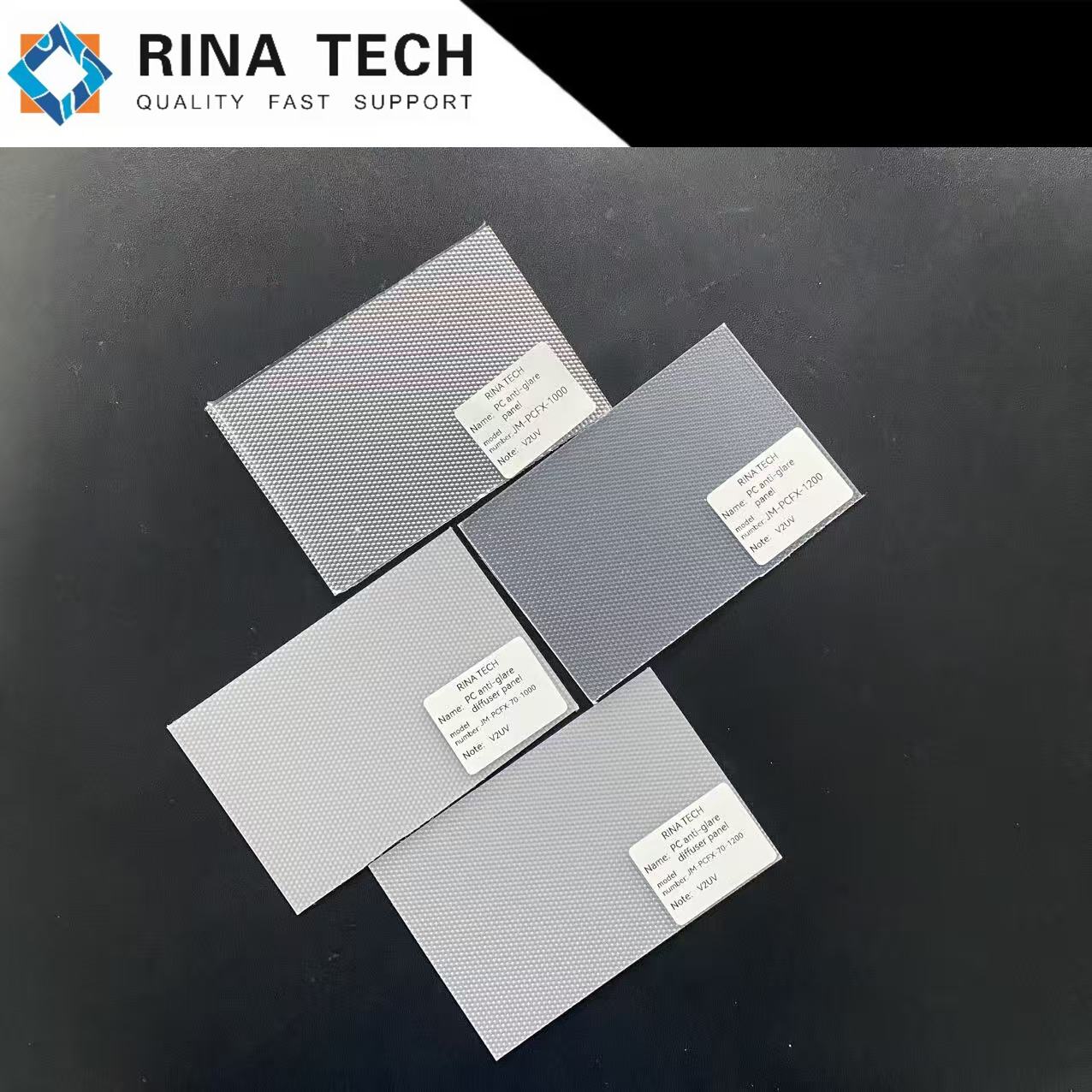

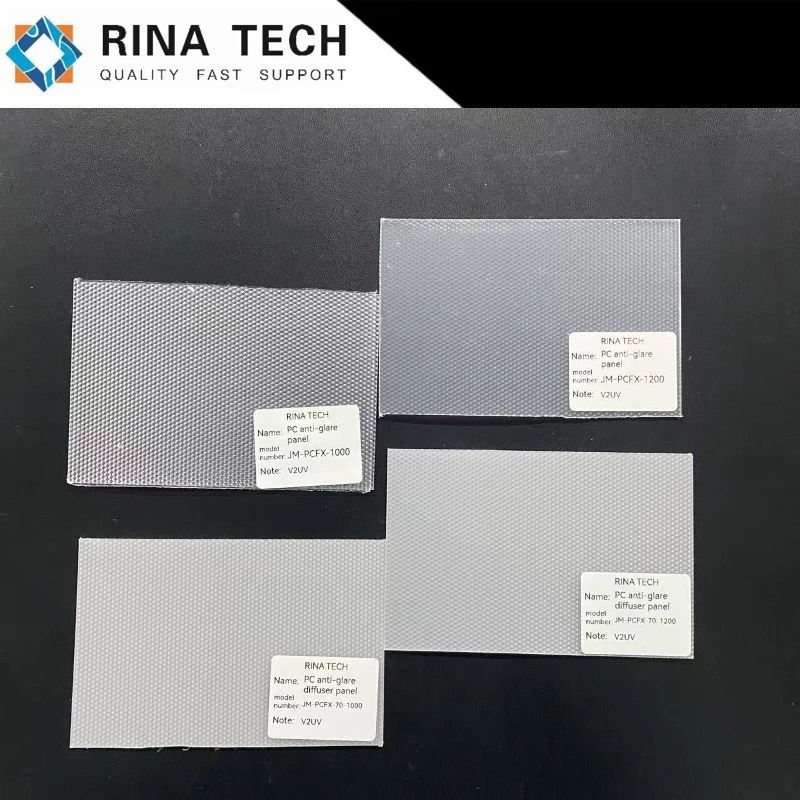

Diamond Pattern Prism Plate is a specially molded optical sheet with a surface covered with regularly arranged diamond-shaped prisms. Its core function is to achieve efficient light control through the optical refraction and reflection of the diamond pattern. This product uses optical-grade PMMA (polymethyl methacrylate), PC (polycarbonate), as the main substrate, combining excellent optical performance and mechanical stability. Thickness (typically 0.1mm-5mm), diamond pattern specifications (side length 0.05mm-5mm), and light transmittance (generally 85%-95%) can be customized according to application requirements.
In terms of applications, Diamond Pattern Prism Plate, due to its light homogenization, focusing, and diffusion effects, is widely suitable for LCD backlight modules, LED lighting fixtures, solar photovoltaic modules, automotive interior optical components, advertising light boxes, and other scenarios.
Diamond Pattern Prism Plate Production Process
1. Substrate Selection and Pre-treatment: High-transmittance, low-impurity optical-grade substrates are selected. Moisture is removed from the raw materials using a dehumidifying dryer. The dried raw materials are then fed into a screw extruder to form a uniform melt.
2. Precision Embossing: The molten substrate is conveyed between embossing rollers and cooling rollers. The surface of the embossing rollers is engraved with a diamond pattern steel mold matching the target product. The pressure between the rollers presses the diamond pattern onto the surface of the melt.
3. Cutting and Trimming: According to customer order requirements, CNC cutting machines are used to cut the shaped boards to the specified dimensions. Then, trimming equipment removes burrs and defects from the edges of the boards.
4. Optical Performance Testing: A transmittance meter, gloss meter, and optical microscope are used to sample and test the products, focusing on transmittance, pattern clarity, and surface flatness.
Diamond Pattern Prism Plate Parameter Details
| Parameter Category | Specific Parameter | Description |
|---|---|---|
| Basic Dimensions | Standard Thickness | 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm; Customization from 0.8mm to 10mm supported |
| Standard Width | 1220mm, Adjustable according to production requirements | |
| Standard Length | 2440mm; Custom cutting supported, minimum cutting size 50mm × 50mm | |
| Optical Performance | Light Transmittance | 85% - 95% (Varies slightly depending on thickness and prism structure; 92% for standard 3.0mm type) |
| Light Uniformity | ≥90%, effectively eliminates LED shadowing and avoids "hotspot" issues | |
| Beam Angle Control Range | 30° ~ 120°, customizable for directional or wide-area lighting effects via prism density and angle design |
Comparison of the advantages of materials used in Lighting Fixture Prismatic Plate
| Dimension | PMMA-based Prism Panel | PC-based Prism Panel | PS-based Prism Panel |
|---|---|---|---|
| Light Transmission | Optimal, 93%-95% transmittance, pure and neutral light, excellent optical effect | Good, 88%-92% transmittance, soft light, better anti-aging performance than PMMA | Average, 80%-85% transmittance, prone to decrease over time |
| Physical Strength | Moderate, average impact resistance, easily scratched by sharp objects, but lightweight | Optimal, 6-8 times the impact strength of PMMA, drop and impact resistant, suitable for outdoor and industrial use | Poor, brittle, prone to breaking, low impact resistance, only for low-risk scenarios |
| Weather Resistance | Good, can be used in semi-outdoor scenarios with UV inhibitors, prone to yellowing outdoors without them | Optimal, inherently UV resistant, withstands high and low temperatures, suitable for outdoor and harsh environments | Poor,Not resistant to high temperatures, prone to aging and brittleness, only for indoor, room temperature environments |
| Processability | Optimal, easy to cut, bend, bond, high precision prism structure formation, suitable for complex customization | Good, can be cut and bent, but requires higher forming temperature, slightly higher cost for complex structures | Moderate, easy to cut but difficult to bend, average precision in prism structure formation |
| Cost | Moderate, cost-effective, mainstream choice for indoor lighting | Higher, cost is 1.5-2 times that of PMMA, suitable for high-performance requirements | Lowest, price only 50%-70% of PMMA, suitable for low-cost, temporary lighting needs |
| Applicable Scenarios | Indoor commercial lighting, home lighting, flat lights, panel lights, etc. | Outdoor lighting, industrial lighting, explosion-proof lights, children's room lighting, etc. | Temporary lighting, low-cost fixtures, disposable lighting products, etc. |
The main role of the Diamond Pattern Prism Plate
1. Superior Optical Control Capabilities: The diamond-patterned structure enables directional focusing and uniform diffusion of light, effectively improving light source utilization. In display scenarios, it can increase brightness uniformity by 20%-30%, and in lighting scenarios
01
2. Excellent Mechanical Properties: Products based on PMMA or PC possess high impact resistance and weather resistance. They can withstand certain external impacts without easily breaking and can adapt to a temperature range of -30℃ to 80℃,
02
3. Lightweight and Easy to Process: Compared to traditional glass prisms, this product has a density of only 1/2 to 2/3 that of glass, making it much lighter. It can also be easily processed into different shapes through simple processes such as cutting, bending, and bonding
03
4. Significant Cost Advantage: Utilizing roll forming technology enables large-scale production, resulting in high efficiency and readily available raw materials. Compared to customized glass prisms, overall production costs can be reduced by 15%-40%, offering better value for money.
04
5. Environmental Friendliness and Durability: All base materials used are recyclable and environmentally friendly, complying with RoHS and other environmental standards. The product surface is smooth and has a certain degree of scratch resistance.
05
Application Scenarios of Diamond Pattern Prism Plate
RINA TECHNOLOGY
is a high-tech enterprise specializing in research, development, production ,sales of Optical LED products and provide the one step optical lighting solution for customers.Established in 2011, Hong Kong, after years of rapid development, Rina Tech has settled office and factory in Shenzhen,and has professional senior technicians and qualified managers,has a talented team for product research and designing.
Nowadays, we have laser cutting machines, printers, film cutting machines, injection molding equipments,high-standard assembly workshops, BM-7 clean machines and other advanced equipments.
Our factory daily output is more than 80000pcs. to cater for the market at home and abroad.With years of unremitting effort,RINA TECH has passed get the Registration Certificate ofCustoms Declaration Unit of the People's Republic of China , National Credit Cultivation Certificate and Get our own Brand already.
We has made many breakthroughs in researching and manufacturing and has
obtained lots of good reputation from oversea customers.
Now we has cooperated with and become strategic partner of some famous enterprises such as LG, Samsung, Lenovo etc."Living on Sincerity, following with Market, Advancing by Specialty" is our eternal philosophy,and the company motto is "Good at Production, Good for Society".
We look forward to cooperating with you to make the world better and future brighter!
FAQ
1. Can Diamond Pattern Prism Plates be used in outdoor environments?
Yes. For outdoor applications, Diamond Pattern Prism Plates with a more weather-resistant PC substrate can be selected. Their surface can be additionally coated with an anti-UV coating, effectively resisting ultraviolet radiation and preventing aging, embrittlement, or decreased light transmittance after long-term outdoor use. This makes them suitable for outdoor applications such as solar photovoltaic systems and outdoor advertising light boxes.
2. Can the diamond pattern specifications of Diamond Pattern Prism Plates be customized?
Absolutely. During production, the diamond pattern can be customized by changing the embossing rollers with different pattern parameters, including the side length (0.05mm-5mm), angle (usually 60°/120° or 90°/90°), and depth of the diamonds, to meet the optical requirements of different scenarios. For example, precision display scenarios require small-sized, fine patterns, while outdoor lighting scenarios can use large-sized, coarse patterns.
3. What is the difference between Diamond Pattern Prism Plates and ordinary diffuser plates?
The core difference lies in the optical mechanism and effect: ordinary diffusers achieve light homogenization through light scattering by internal microparticles, but this results in some loss of luminous flux; while the Diamond Pattern Prism Plate, through the refraction and reflection of diamond prisms, achieves both light homogenization and light focusing, resulting in higher light utilization and a more significant increase in brightness, making it more suitable for scenarios with high requirements for both brightness and uniformity (such as LCD backlighting).
4. How to clean stains on the surface of the Diamond Pattern Prism Plate?
Use a gentle cleaning method to avoid damaging the diamond pattern: It is recommended to use a lint-free cloth dampened with medical alcohol or a special optical cleaner with a concentration of less than 50%, and gently wipe in a clockwise or counterclockwise direction, avoiding back-and-forth rubbing; do not use hard-bristled brushes, sandpaper, or strong corrosive cleaners (such as gasoline or acetone), as this may scratch the surface or damage the substrate.
