Led Diffuser Sheet

Rina Technology Co., Ltd. is one of the leading manufacturers and suppliers of led diffuser sheet in China. Welcome to wholesale durable products in stock here and get quotation from our factory. All customized products are with high quality and low price.

The diffuser plate achieves uniform diffusion of light by making a diffusion layer on a substrate such as PC/PMMA/PS. When light enters this diffusion layer, it encounters a diffusion particle medium with a different refractive index from the substrate. In this process, multi-angle and multi-directional refraction, reflection and scattering phenomena will occur.

These complex optical effects can effectively break up and disperse the incident light, making the light more evenly distributed. This provides a softer and more uniform surface light source for applications such as display lighting.

Specifically, the functions of the diffuser include:

Eliminate bright spots and hot spots of the light source: The diffuser layer can effectively disperse the light and reduce the local highlight area.
Improve the uniformity of light: Through multi-angle refraction and scattering, the light can be more evenly distributed over the entire surface.
Improve visual comfort: Softer and more uniform lighting can reduce glare and reduce visual fatigue.
Applicable to various display lighting applications: Diffusers are widely used in optical products such as LED lamps, LCD backlights, and projectors.

1.Uniform light distribution
The light emitted by the light source (such as LED lamp beads) is usually concentrated. In the case of a diffuser, the light passes through the special structure inside the diffuser (such as microstructure or added scattered light particles), so that the light is scattered in all directions, making the light output more uniform. For example, in a flat panel lamp, the diffuser can ensure that the entire lamp surface emits light evenly, without the situation where the middle is bright and the edge is dark.
2.Reduce glare
Glare can make the human eye feel uncomfortable. The diffuser disrupts the propagation direction of the light, disperses the originally concentrated and high-brightness light, and makes the light intensity seen by the observer more uniform and soft, thereby effectively reducing glare. For example, using a diffuser on some spotlights can reduce the glare while ensuring sufficient lighting.
3.Improve the concealment of the light source
The shape or arrangement of the light source of some lamps may not be beautiful, and the diffuser can block the light source. It allows people to see the soft light after diffusion, rather than individual light sources, thereby enhancing the overall appearance of the lamp. For example, in some chandeliers or wall lamps with decorative requirements, the diffuser can hide the light source behind and only emit soft light.

4.Versatile Applications: Diffuser sheets are widely used in various optical and lighting applications, such as LED lighting, LCD backlighting, and projection displays, making them adaptable to different light sources and use cases.

5.Cost-Effectiveness: Compared to other optical components, diffuser sheets are generally more cost-effective to manufacture, while also improving the overall energy efficiency of the lighting system.

6.Lightweight and Thin Design: Diffuser sheets are typically designed as thin film structures, making them lightweight and space-saving, which benefits the compact design of lighting devices.

Material Selection:
The base material for the diffuser sheet is usually a transparent polymer, such as polycarbonate (PC), polymethyl methacrylate (PMMA), or polystyrene (PS).
Specialized additives or dopants may be incorporated into the polymer to enhance the diffusion properties.
Extrusion or Casting:

The polymer material is melted and extruded through a die to form a continuous sheet or film.
Alternatively, the polymer can be cast onto a smooth surface to create the sheet.
Surface Modification:

The surface of the extruded or cast sheet is then modified to create the desired diffusion pattern or microstructure.
This can be done through various techniques, such as embossing, micromachining, or chemical etching.
Inspection and Quality Control:

The diffuser sheet is inspected for dimensional accuracy, surface quality, and optical performance.
Any necessary adjustments or rework are done to ensure the sheet meets the specified requirements.

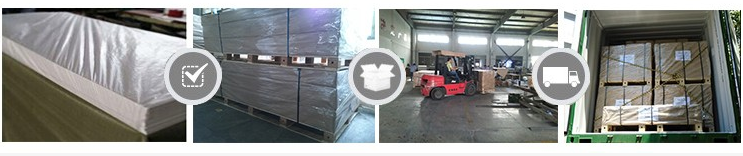

Cutting and Packaging:

The diffuser sheet is cut into the desired sizes or shapes, depending on the application.
The final products are then packaged, typically in rolls or sheets, for storage and transportation.
Optional Coatings or Treatments:

In some cases, additional coatings or treatments may be applied to the diffuser sheet to enhance its optical properties, scratch resistance, or environmental durability.

1.Lighting

LED lighting fixtures: Diffuser sheets are used to create a uniform and glare-free illumination in LED lamps and light fixtures.
LCD backlighting: Diffuser sheets play a crucial role in ensuring even and consistent backlighting for LCD displays.
Architectural and interior lighting: Diffuser sheets are used to enhance the visual comfort and ambiance in architectural and indoor lighting applications.
Automotive lighting: Diffuser sheets are used in headlights, taillights, and other automotive lighting systems to improve light distribution and appearance.
2.Display Technology:

LCD displays: Diffuser sheets are an integral part of the backlight unit in LCD panels, improving the uniformity and quality of the displayed image.
Projection screens: Diffuser sheets are used in projection screens to create a uniform and diffused projection surface.
Touchscreen panels: Diffuser sheets can be incorporated into touchscreen devices to reduce glare and improve the overall visual experience.
3.Optical Instruments and Devices:

Photographic and imaging equipment: Diffuser sheets are used to create soft and even lighting in cameras, scanners, and other imaging devices.
Medical equipment: Diffuser sheets find application in medical imaging and diagnostic devices, such as X-ray machines and endoscopes.
Optical sensors and detectors: Diffuser sheets can be used to improve the performance and reliability of optical sensors and detectors.
