Scatter Plate For Sky Light
The Scatter Plate For Sky Light has the characteristics of high light transmittance, ability to simulate blue sky effect, customizable thickness and additional functions.
It is widely used in lighting, light therapy and many other fields.
Shape: Customizable
Size: Customizable
Roll Material: Available
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description

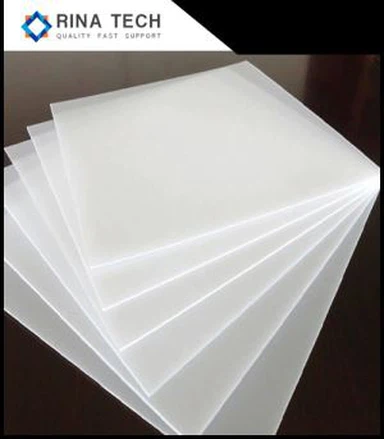

Scatter plate for sky light
Scatter Plate For Sky Light Structure and Materials
Scatter Plate For Sky Light are generally transparent plates with dispersed nano-scattering particles. They are commonly made from a variety of materials, one of which is based on polymethyl methacrylate (PMMA). This PMMA-based diffuser material primarily comprises PMMA, a scattering agent, and a dispersant. The weight ratio is 99.491-99.895% PMMA, 0.005-0.009% scattering agent, and 0.1-0.5% dispersant. The scattering agent is typically either nano-titanium dioxide or nano-silicon dioxide, both of which exhibit a blue light effect. When using nano-titanium dioxide and nano-silicon dioxide, the weight ratio is preferably 1:1, and the scattering agent size is generally between 3.2 and 4.5 nm. Triton X-100 is commonly used as the dispersant. Through this material combination and ratio, as well as plasma treatment of the diffuser, uniform dispersion of the diffuser within the base material is achieved, ensuring excellent scattering.
Some Scatter Plate For Sky Light are made of transparent resin infused with tiny metal particles. When the white light from a lamp passes through this diffuser, it is strongly scattered, giving the entire panel a color similar to the sky, while the light that passes through it resembles natural sunlight.
Features of Scatter Plate For Sky Light
High Light Transmittance: Most diffusers guarantee high light transmittance, with some offering transmittances exceeding 75%. This ensures sufficient light can pass through the panel, meeting basic lighting requirements.
Customizable Thickness: A wide range of thicknesses is available. Some manufacturers offer diffusers ranging from 1.8mm to 150mm, providing a variety of options to suit different applications and design requirements. For example, thinner diffusers can be used in indoor lighting fixtures with limited space requirements. Thicker diffusers can be used in specialized applications where a longer optical path is required for enhanced scattering and where a more precise diffusion effect is desired.
Simulating a Blue Sky Effect: This is the most prominent feature of diffusers. When the white light from a lamp's light source passes through the diffuser, the micro-nanoparticles contained in the panel act similarly to suspended particles in the Earth's atmosphere, scattering the white light on its surface. This ultimately creates a blue sky effect, while the light passing through the diffuser is warm white. By adjusting the diffuser's material formula, nanoparticle type, and concentration, it's possible to achieve varying degrees and effects of "blue sky simulation" to meet the diverse indoor ambiance needs of different clients.
Additional functions: Some Scatter Plate For Sky Light also function as photocatalysts. Under certain lighting conditions, the catalytic material (such as nano-titanium dioxide) can decompose organic compounds like formaldehyde and benzene in the air into carbon dioxide and water, effectively decomposing harmful gases and purifying the air. Furthermore, some diffusers can suppress and absorb ultraviolet rays, protecting people and objects indoors from harmful UV rays.
Applications of Scatter Plate For Sky Light
high quality
Lighting
Indoor Lighting: In indoor lighting, Scatter Plate For Sky Lightare widely used to create various fixtures that simulate natural light. For example, blue sky lights and sunlight lights, equipped with diffusers, can create lighting effects similar to those found outdoors, such as blue skies and sunlight. Compared to traditional indoor lighting, this natural light-mimicking experience provides a more natural and comfortable experience, effectively soothing emotions and relieving stress. It is particularly suitable for spaces where people spend extended periods indoors, such as offices, conference rooms, and classrooms. For example, in offices with no or insufficient natural light, installing lamps with diffusers can improve the work environment and boost productivity
Specialty Lighting:
In areas lacking natural light, such as underground shopping malls, subway stations, and tunnels, diffusers can significantly enhance the ambiance. By simulating the effects of blue skies and sunlight, they can alleviate feelings of oppression in these enclosed spaces and provide a more comfortable visual experience. For example, in underground shopping malls, using diffuser-equipped lighting can create a bright, open shopping environment, attracting customers to stay and spend. Light therapy: Diffusing panels, which mimic the properties of natural light, are also used in light therapy. Some natural light-simulating light therapy devices employ diffusers, mimicking the blue sky effect to regulate mood and improve sleep quality. These devices can be used to treat seasonal affective disorder, among other conditions. For example, in areas with shorter daylight hours in winter, some people may experience seasonal mood swings (SAD). Using these diffuser-based light therapy devices can alleviate these symptoms to a certain extent and help maintain a positive mental state
Other Applications
High-end residential renovation: In high-end residential renovations, diffusers can be used as a unique decorative material to create a unique interior atmosphere. For example, installing diffuser-equipped lamps or decorative panels on the ceilings or walls of living rooms and bedrooms can create a comfortable living environment that resembles a blue sky, enhancing the quality and living experience of the home.
Office lighting: In office spaces, a good lighting environment helps improve employee productivity and comfort. The use of diffusers can provide lighting that more closely resembles natural light, reducing the visual fatigue and physical discomfort that can occur when employees are exposed to artificial lighting for extended periods of time. At the same time, the unique blue sky simulation effect can also add a unique atmosphere to office buildings, enhancing their overall image.
RINA TECHNOLOGY
is a high-tech enterprise specializing in research, development, production ,
sales of Optical LED products and provide the one step optical lighting solution for customers.
Established in 2011, Hong Kong, after years of rapid development, Rina Tech has settled office and factory in Shenzhen,
and has professional senior technicians and qualified managers,
has a talented team for product research and designing.
Nowadays, we have laser cutting machines, printers, film cutting machines, injection molding equipments,
high-standard assembly workshops, BM-7 clean machines and other advanced equipments.
Our factory daily output is more than 80000pcs. to cater for the market at home and abroad.
With years of unremitting effort,RINA TECH has passed get the Registration Certificate of
Customs Declaration Unit of the People's Republic of China , National Credit Cultivation Certificate and Get our own Brand already.
We has made many breakthroughs in researching and manufacturing and has
obtained lots of good reputation from oversea customers.
Now we has cooperated with and become strategic partner of some famous enterprises such as LG, Samsung, Lenovo etc.
"Living on Sincerity, following with Market, Advancing by Specialty" is our eternal philosophy,
and the company motto is "Good at Production, Good for Society".
We look forward to cooperating with you to make the world better and future brighter!
FAQ
What is the main function of a Scatter Plate for Sky Light?
How do I install a Scatter Plate for Sky Light?
Does a Scatter Plate for Sky Light require regular cleaning?
Is a Scatter Plate for Sky Light suitable for all types of skylights?
Do Scatter Plates for Sky Light effectively block UV rays?
Hot Tags: scatter plate for sky light suppliers, factory, customized, price, in stock
