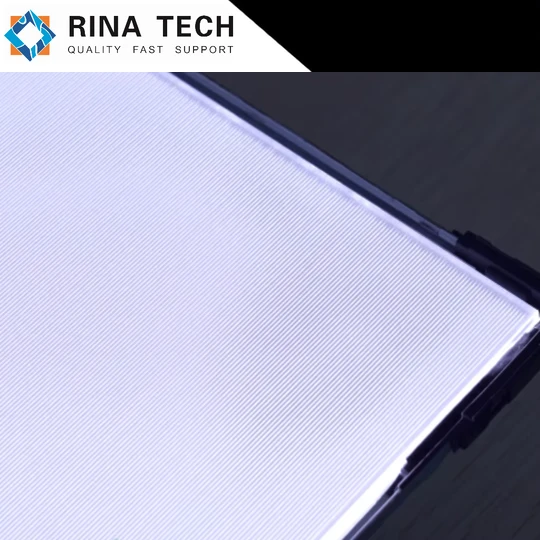

High Uniformity TV Light Guide Plate

The High Uniformity TV Light Guide Plate is a core optical component specifically developed for television display systems. Its primary function is to transform the point or line light source of the TV backlight module into a uniform surface light source, providing the fundamental optical foundation for high-quality image display.

The product has a standard thickness of 2.5mm, and its size can be customized to meet the needs of different TV models, adapting to various television products ranging from mainstream home sizes to large commercial screens. In terms of material selection, the product uses high-quality PMMA or PCas the core raw material.

Both materials possess excellent light transmittance, weather resistance, and mechanical strength, meeting the performance requirements of light guide plates in different application scenarios.

The manufacturing process combines laser dotting and hot pressing, precisely controlling the distribution and shape of the light guide dots to ensure efficient light transmission and uniform diffusion. It is an indispensable core component of modern high-definition televisions.

First, PMMA or PC raw materials are strictly screened, and key indicators such as light transmittance, purity, and melt index are tested to ensure that the raw materials meet production standards. The qualified raw materials are then dried to remove moisture, preventing defects such as bubbles during the subsequent molding process.

Based on the customer's customized dimensions and light guide parameters, the mold is designed and manufactured. The mold must accurately replicate the shape, thickness, and distribution pattern of the light guide plate's light-emitting points, ensuring that the mold accuracy meets the production requirements of optical components.

The dried raw materials are added to the molding equipment, heated to a molten state, and then injected into the pre-prepared mold. Through the hot pressing process, the raw materials are molded to the shape of the mold, initially forming the blank structure of the light guide plate. This process requires strict control of temperature, pressure, and molding time to ensure the dimensional accuracy and surface flatness of the light guide plate.

After the molded light guide plate blank cools and sets, it enters the laser dotting process. Using high-precision laser equipment, a light-emitting dot array is precisely created on the surface of the light guide plate according to the preset light guide parameters. The size, density, and distribution of the light-emitting dots directly determine the brightness uniformity of the light guide plate; therefore, this process requires professional optical testing equipment for real-time monitoring to ensure dotting accuracy.

The laser-dotted light guide plate is trimmed to remove burrs and excess material generated during the molding process, ensuring the dimensional accuracy of the light guide plate. The surface of the light guide plate is then finely polished to further improve surface flatness and smoothness, preventing any impact on light transmission.

Professional optical testing equipment (such as a brightness meter and uniformity tester) is used to test the light transmittance, brightness uniformity, and other core optical performance of the light guide plate; simultaneously, external dimensions and surface defects (scratches, bubbles, impurities) are inspected to ensure that the product meets quality standards.
