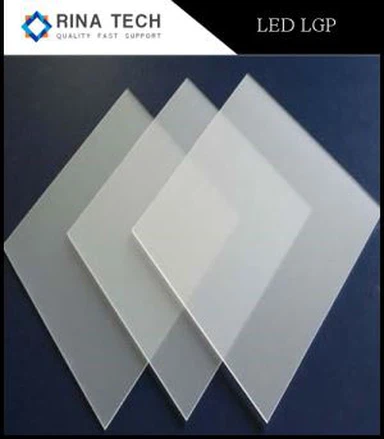

Led Light Guide Panel

Rina Technology Co., Ltd. is one of the leading manufacturers and suppliers of led light guide panel in China. Welcome to wholesale durable products in stock here and get quotation from our factory. All customized products are with high quality and low price.



Product Introduction:

The LGP (light guide plate) is to use an optical grade Acrylic/PS plate to print light guide points on the smooth surface of the plate through laser dotting, V-shaped cross grid engraving, or UV screen printing technology, so as to achieve the point or line The effect of the light source being transformed into an area light source.



LED panel light guide plate:

The most typical application of light guide plates in the field of lighting is led panel lights. The so-called three-piece set refers to reflective paper, light guide plate, and diffuser plate; generally extruded light guide plate uses screen printing dots, cast light guide plate can be dotted with laser, the laser dot effect is good, and the use time is long; light guide plate can be made of acrylic and PS, PS is generally used for diffuser plates.



Features:

The optical-grade acrylic plate is used to absorb the light emitted from the light source to stay on the surface of the optical-grade acrylic plate. When the light hits each light guide point, the reflected light will diffuse to various angles, and then destroy the reflection condition and be emitted from the front of the light guide plate.

Through light guide points of various densities and sizes, the light guide plate can be made to emit light evenly.

The led light guide panel has several features that make it an ideal component for led panel lights.

Firstly, it has high light transmittance, which means that it allows more light to pass through, resulting in brighter and clearer illumination.

Secondly, it has excellent thermal conductivity, which ensures that the heat generated by the led is dissipated efficiently.

Thirdly, the micro-structure of the light guide plate surface makes the light evenly dispersed, reduces glare, and improves visual comfort.



Material:

PMMA extruded new material striped board,

PMMA extruded new material transparent board;

PS transparent stripe board, PS light board;

MS stripes are mainly used for TV light guides.

Due to their small expansion coefficient, they are relatively popular.

The led light guide panel is usually made of acrylic material, recognized for its excellent optical properties, lightweight, durability, and easy processing.

Acrylic is also resistant to weathering, chemicals, and impact, making it a suitable material for indoor and outdoor applications.

The optical properties of acrylic include high transparency, low haze, and uniform light distribution, which are essential for the performance of led panel lights.



Application:

The led light guide panel is used in a wide range of applications, including offices, hospitals, schools, and retail stores. It is also used in industrial and residential settings where high-quality lighting is required. The light guide plate can be customized to meet specific lighting requirements, such as color temperature, luminosity, and beam angle.



Production Technology:

The production process of the led light guide panel involves several processes such as cutting, polishing, and laser engraving. Guides must be precisely cut to size and polished to remove any blemishes or scratches. Laser engraving is used to create micro-structures on the surface of the guide plate to evenly disperse the light from the LED.

The quality of the light guide plate is not only related to the acrylic/PS original plate but the design and production of the light guide dots are very critical. Generally, according to the requirements of use, there are professional tool design schemes, including the shape, size, and density of the dots.

After the design plan comes out, there are four main manufacturing processes:

1. Laser dotted

Good effect, durable, moderate price; low production efficiency.

2. Hot pressing

The investment in production equipment is large, and the reflective points are hot-pressed on the back of the striped board or the bare board in the later stage;

3. Silkscreen

The cost is low and the efficiency is relatively high; the ink will volatilize due to high temperature, which is not environmentally friendly.

4.No silkscreen

When producing extruded boards, at the same time directly extrude the reflective points on the board surface.



Packaging:

The led light guide panel is usually packaged in a protective film to prevent scratches and damage during transportation. It is also packed in a sturdy cardboard box that provides additional protection. Special oil film brown paper packaging packed into cardboard boxes, and finally on the outer layer of a layer of wood, a large volume with the whole wooden box packaging.



Company Services:

We are a technology-based company specializing in the R&D, production, and sales of optical thin film materials and customized backlight products. We mainly provide customers with one-stop optical lighting solutions. The company was established in Hong Kong. After years of rapid development, it has now set up offices and factories in Shenzhen.



At present, there are more than ten years of company history and export experience. We cooperate with many well-known brand companies such as Toyota, BOE, Flextronics, Xiaomi, Siemens, Coca-Cola, etc., which makes us more reliable in custom R&D technology and product manufacturing process and has won unanimous praise from customers.



Professional customized one-stop optical solutions, including technical support, product customization, and after-sales service. Through sustainable business operations in many countries and regions around the world, we provide technological innovation, supply chain and manufacturing solutions, and end-market product matching for various industries. Provide professional engineers and business teams, standardized mechanical equipment, controllable product quality, fast production speed, and efficient service feedback.



What is the purpose of the led light guide panel?

1. Commercial lighting fixtures - in offices, hotels, supermarkets, and different public spaces.

2. Residential lighting fixtures - in homes, apartments, and different dwelling spaces.

3. Display lighting fixtures - for retail stores, museums, and artwork exhibits.

4. Signage - for marketing and marketing and promotional purposes.

LED panels are energy-efficient, long-lasting, and offer a uniform mild output. They additionally provide flexibility in phrases of color temperature, brightness, and dimming options, making them a preference for current lighting fixtures solutions.



What is el panel vs led panel?

An EL panel is a product of a skinny layer of phosphor fabric that emits mild whilst an electric-powered modern-day is exceeded via it. The panel itself does now no longer emit mild but instead illuminates from the layer of phosphor fabric. EL panels are regarded for their thinness and flexibility, making them best to be used in programs consisting of wearable electronics and backlit displays.

An LED panel is made of more than one mild-emitting diode (LED) which might be organized in a grid pattern. These diodes emit mild whilst electric-powered modern-day passes via them directly. LED panels are regarded for their bright, energy-green lights and are typically utilized in industrial spaces, in addition to homes, for light purposes.

Overall, the primary distinction between the 2 is the manner they produce mild. EL panels produce mild via a phosphorescent layer, while LED panels emit mild via man or woman LEDs.
