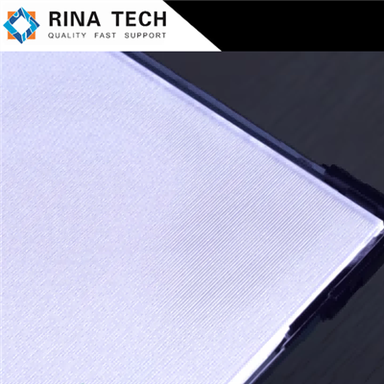

Automotive Navigation Light Guide Plate

1. Optical Substrate Body
The substrate body serves as the foundational carrier for the Automotive Navigation Light Guide Plate, constituting the core structural element of the entire assembly. The predominant materials used are high-transmittance, optical-grade PMMA (acrylic) or modified PC. This substrate material is characterized by high light transmittance, exceptional toughness, resistance to shattering, and tolerance to the temperature fluctuations typical of automotive environments. Following precision polishing and surface finishing, the plate surface becomes crystal-clear and free of impurities, serving as the fundamental medium for light transmission, reflection, and refraction. Depending on the dimensions of the in-vehicle navigation screen, the plates can be custom-manufactured in various specifications-including rectangular, irregular (free-form), narrow-bezel, and ultra-thin designs-to seamlessly fit the specific installation spaces available within the central console of different vehicle models.

2. Optical Microstructure Layer
The optical microstructure layer is the critical structural component that determines the uniformity of light emission in the Automotive Navigation Light Guide Plate. It is primarily distributed across the bottom surface of the light guide plate or within the light-entry zones along its edges. Through precision manufacturing processes-such as laser engraving, nano-etching, or injection molding-this layer features micron-scale patterns, including dot matrices, linear stripes, or honeycomb-like textures. The density, size, and spatial arrangement of these patterns are meticulously designed using advanced optical algorithms. This structure enables precise control over light propagation paths and disrupts the conditions for total internal reflection, thereby ensuring that light exits the plate surface uniformly. This effectively resolves issues related to localized brightness inconsistencies (uneven bright and dark spots) on the navigation screen, guaranteeing consistent illumination across the entire display area.

3. Auxiliary Optical Film Layers
The auxiliary optical film layers serve as complementary functional components for the Automotive Navigation Light Guide Plate, comprising two distinct parts: a reflective film and a diffusion film. These films are laminated onto the surface of the substrate body and function in tandem. Specifically, the reflective film is applied to the bottom surface of the light guide plate; it captures and redirects any light that would otherwise escape downward, thereby eliminating light loss and maximizing the utilization efficiency of the light source. The diffusion film is applied to the light-emitting surface of the light guide plate; it further softens the light and attenuates subtle bright spots, resulting in a softer, more refined navigation backlight that enhances the overall visual quality of the display.

4. Wear-Resistant Protective Surface Layer
The protective surface layer constitutes the outermost defensive structure of the Automotive Navigation Light Guide Plate. It is formed on the exterior of the light-emitting surface through specialized processes such as nano-coating or hard-coating treatments. This surface layer features anti-scratch, anti-fingerprint, UV-resistant, and anti-oxidation properties. It effectively withstands the wear and tear associated with dust abrasion, daily contact, and prolonged sun exposure during in-vehicle use, thereby preventing surface scratches, yellowing, and hazing. By maintaining the light guide plate's light transmission performance and optical precision over time, it is ideally suited for the demands of long-term, high-frequency usage in automotive environments.
