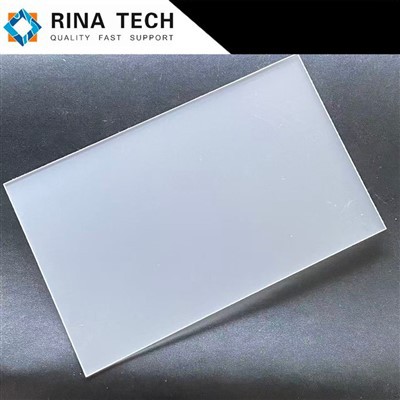

PMMA Oval Light Diffuser Sheet
Product Name: PMMA Oval Light Diffuser Sheet
Size: Customizable
Thickness: ( PC: 0.25mm-6mm ) ( PMMA: 0.65mm-6mm )
Functions: Customizable elliptical light, Enhanced light effect, Concealed light beads
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Rina Technology Co., Ltd. is one of the leading manufacturers and suppliers of pmma oval light diffuser sheet in China. Welcome to wholesale durable products in stock here and get quotation from our factory. All customized products are with high quality and low price.
PMMA Oval Light Diffuser Sheet
Office Lighting and EN 12464-1 Compliance
In this environment, a PMMA oval light diffuser sheet is often used in recessed or suspended linear luminaires. By stretching the light along the length of the workspace while keeping the transverse distribution narrow, the diffuser ensures that the light reaches the desk surface efficiently without contributing to the "veiling glare" that can occur on computer screens.
Museum and Gallery Illumination
In the world of European museum design-exemplified by institutions like the National Museum in Oslo or the V&A in London-lighting is both a technical requirement and an artistic tool. Museums often require "wall washers" that can provide uniform vertical illuminance from the floor to the ceiling.
Reduced Risk
HMLV manufacturing prevents the "inventory trap" by producing exactly what is needed for a specific project, thereby reducing waste and cost. Factories that maintain their own tool-and-die shops can rapidly develop new micro-structured rollers to meet a designer's unique beam requirements.
Quality Control and Metrology
The use of goniophotometers and integrating spheres to verify FWHM angles and light transmission for every batch. To prevent dust inclusions or surface defects that could cause "sparkle" or stray light, the extrusion of optical sheets often takes place in controlled environments.
PMMA Oval Light Diffuser Sheet
As LEDs become smaller and more powerful, the "hotspot problem" becomes more acute. If the PMMA oval light diffuser sheet is placed too close to the LEDs, the individual points of light remain visible. The "rule of thumb" in the industry is that the distance between the LED and the diffuser should be at least equal to the spacing between the LEDs themselves. However, in shallow European "slimline" fixtures, this is not always possible. A factory advantage lies in providing "high hiding power" diffusers that utilize specialized bulk additives or double-sided microstructures to homogenize the light in a very short distance without a proportional drop in transmission.
In asymmetric lighting, if the microstructures are not perfectly aligned or if the material has internal stresses, "striations" or "bars" of light can appear on the wall. Troubleshooting this requires a holistic view of the fixture. If striations occur, it may be due to:
PMMA Oval Light Diffuser Sheet
For a PMMA oval light diffuser sheet to succeed in the sophisticated European project market, it must be positioned not as a commodity but as a high-performance optical tool. The European customer is not just buying a piece of plastic; they are buying an "illuminance result." To meet their expectations, a factory must offer:
Precision Engineering: FWHM angles tailored to the specific needs of EN 12464-1 compliance and UGR management.
Regulatory Rigor: A full portfolio of fire (EN 13501-1), safety (REACH/RoHS), and quality (ISO) certifications.
Engineering Support: Providing the Zemax models, thermal expansion data, and troubleshooting guides that allow designers to specify the product with confidence.
| Size | Thickness | Material | Typical Luminous Efficacy |
|---|---|---|---|
| Customizable | ( PC: 0.25mm-6mm ) ( PMMA: 0.65mm-6mm ) | PC/PMMA | 92 - 96% |
RINA TECHNOLOGY
is a high-tech enterprise specializing in research, development, production ,
sales of Optical LED products and provide the one step optical lighting solution for customers.
Established in 2011, Hong Kong, after years of rapid development, Rina Tech has settled office and factory in Shenzhen,
and has professional senior technicians and qualified managers,
has a talented team for product research and designing.
FAQ
1. How does PMMA Oval Light Diffuser Sheet ensure stable optical performance?
On the one hand, high-quality raw materials and precision manufacturing processes are used during the production process, and production parameters are strictly controlled. On the other hand, the film's surface undergoes special treatment, ensuring excellent weather resistance and chemical stability. This allows it to resist the effects of environmental factors (such as temperature, humidity, and UV rays) on optical properties, thereby ensuring long-term stable optical performance.
2. What are the advantages of PMMA Oval Light Diffuser Sheet over Conventional Diffuser Film?
Compared to conventional diffuser films, PMMA Oval Light Diffuser Sheet, with its unique elliptical microstructure design, offers significant advantages in light diffusion angle control, improved light uniformity, and optical transmittance. It can more precisely control light propagation, achieving higher-quality light diffusion, while also offering superior durability and environmental performance.
3. How customizable is PMMA Oval Light Diffuser Sheet ?
Manufacturers can provide highly customized services based on specific customer needs. These services include film dimensions, thickness, microstructure parameters (such as elliptical shape, size, and spacing), and surface treatment. These can all be customized to meet the specific needs of different application scenarios.
Hot Tags: pmma oval light diffuser sheet suppliers, factory, customized, price, in stock, Backlight Diffuser Film, LCD Diffuser Film TV Repair, LED Diffuser Film, Optical Diffuser, PET Diffuser Film For Monitor, Profession Optical Diffuser Film
